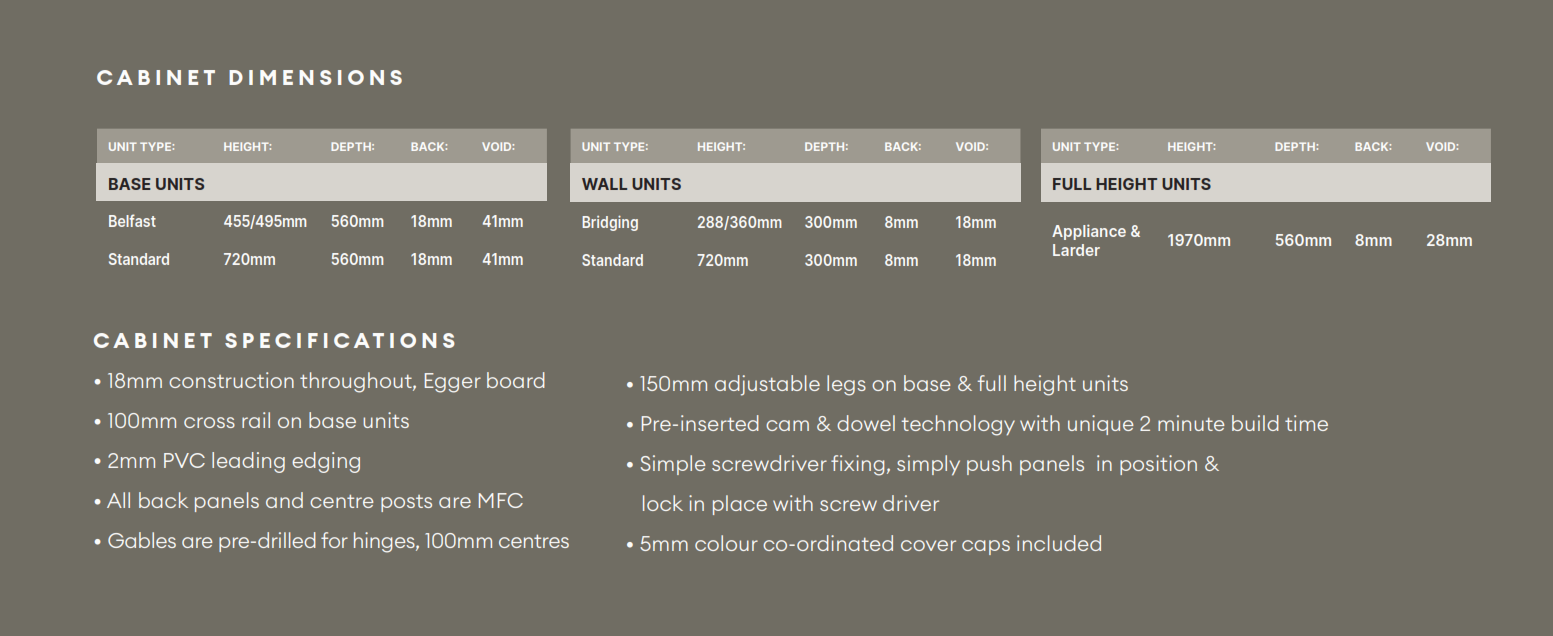

Tech Spec
Explore Detailed Technical Specifications of our Quality Products

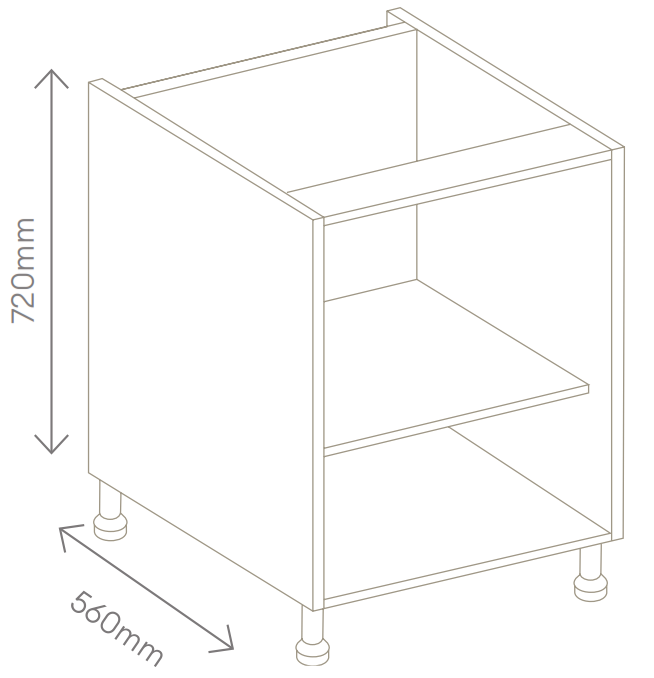

Base UNits
720mm x 560mm

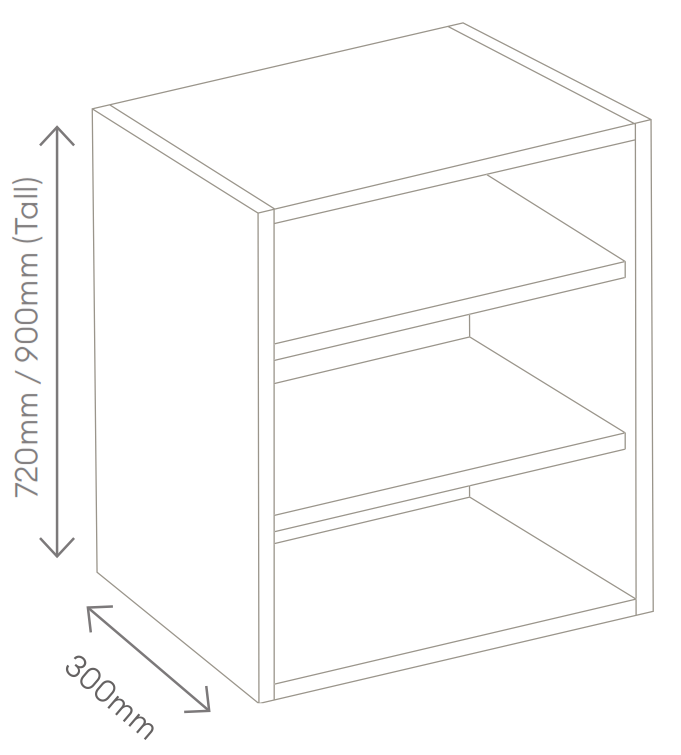

Wall units
720mm/900mm (Tall) x 300mm

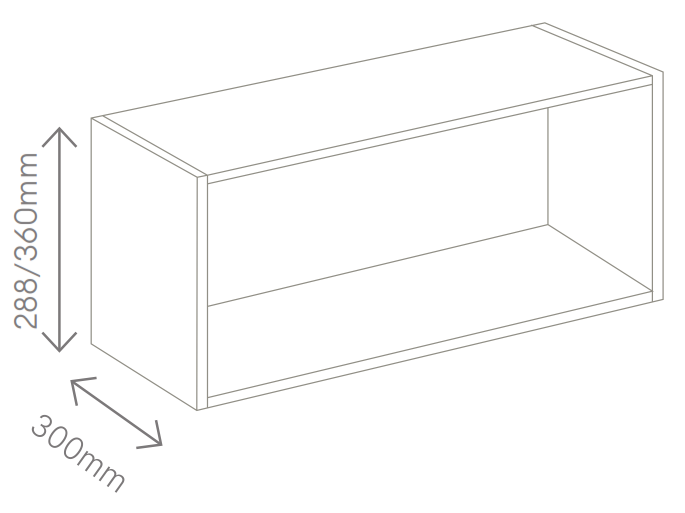

Bridging units
288/360mm x 300mm

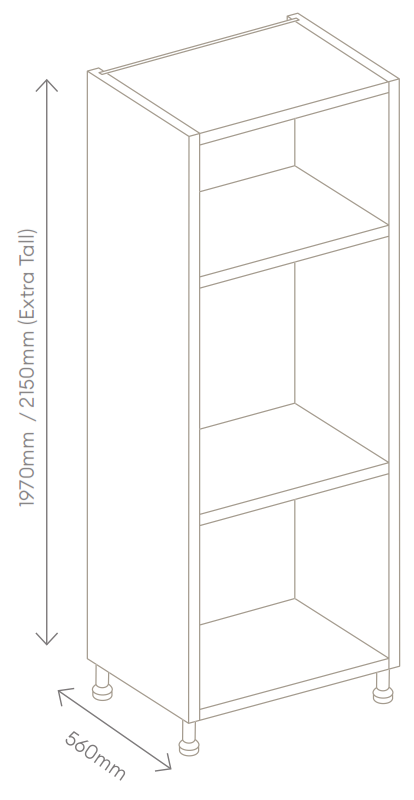

Larder Appliance unit
1970mm/2150mm (Extra Tall) x 560mm
* Please note: Appliance sizes will vary which will have an affect on filler/door sizes. Please check appliance dimensions and specifications carefully prior to
purchase/installation to ensure they are suitable for the purpose. It’s up to the fitter to ensure the unit is installed correctly and in line with any safety regulations.

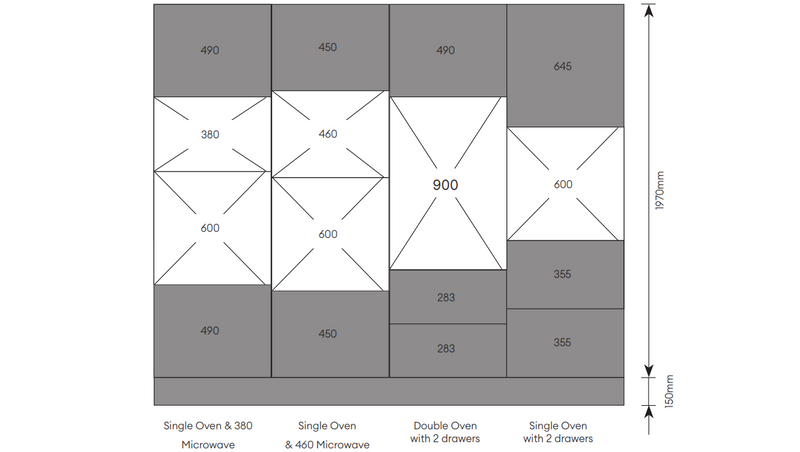

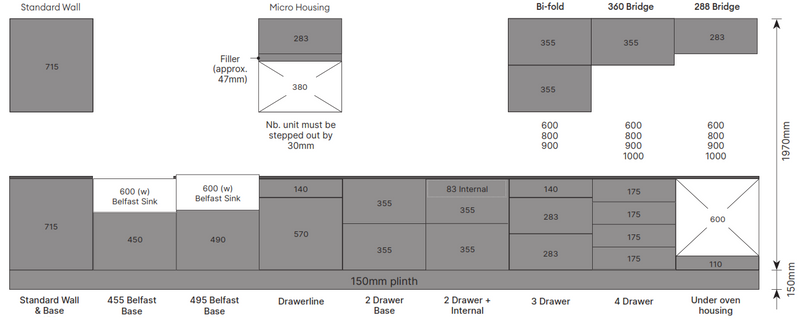

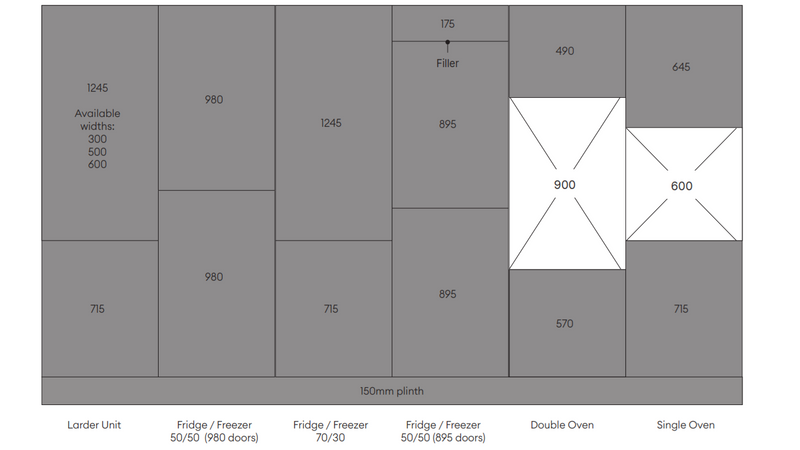

Door Configurations
Click on each tile to explore

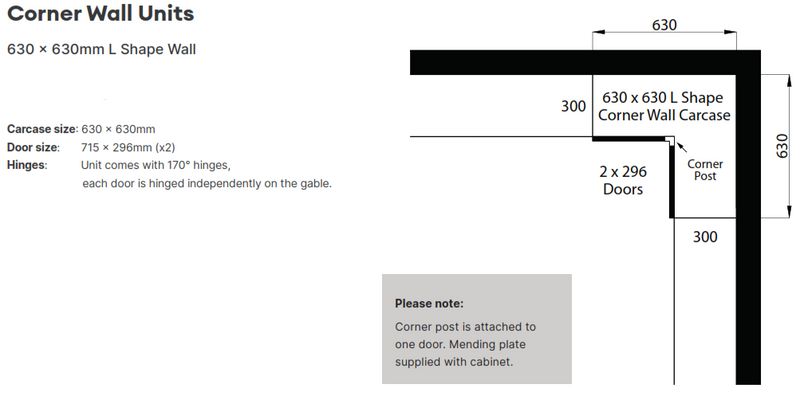

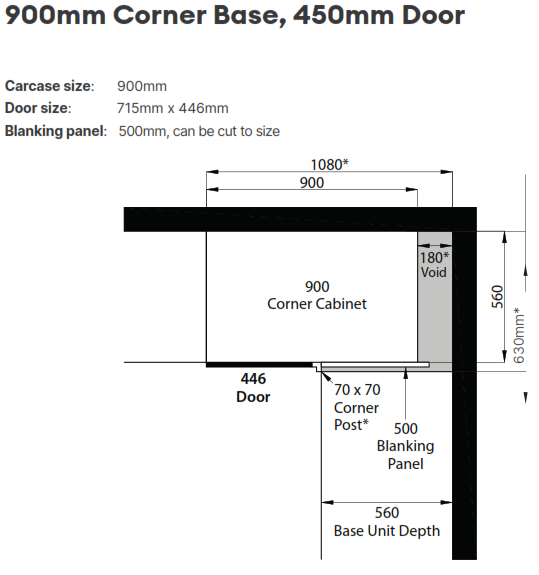

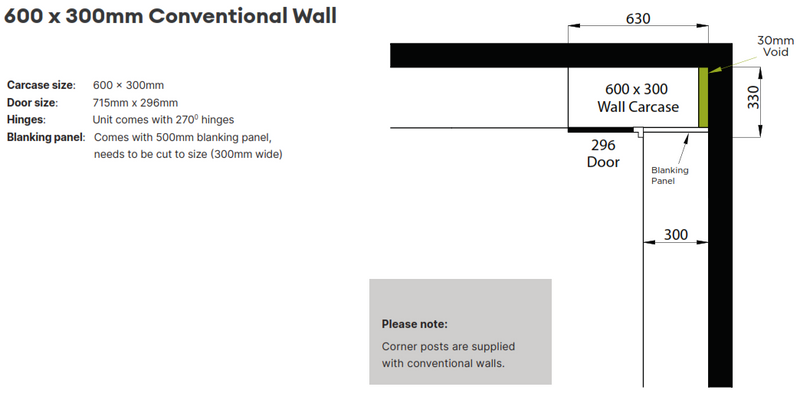

Corner Wall UNits
Click on each tile to explore
